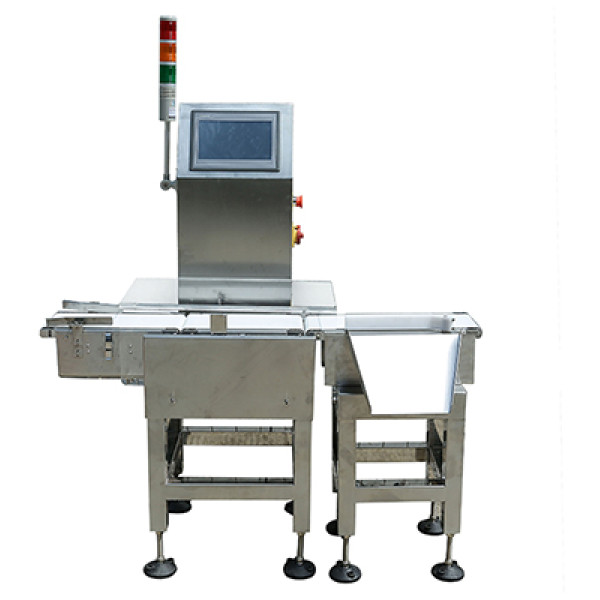

DCW series High precision checkweigher

Categoría

    DCW series High precision checkweigher

    DCW series High precision checkweigher
    DCW series High precision checkweigherDCW series High precision checkweigherDCW series High precision checkweigherDCW series High precision checkweigher
    Categoríasmall range(weight range:1g-3Kg)
    ModeloDCW series
    Weight checking accuracyWeight checking accuracy
    MaterialWeighing Sensor: Aluminum and stainless steel optional Roller: Aluminum Structure: stainless steel 304 Conveyor Belt: White, Food Grade, Polyurethane Thermoplastic (TPU)
    Bajar DOCpdf icon
    Tiempo de Actualización2024/3/29
    Información Detallada
    Parameter
    DCW series High precision checkweigher
    Product model
    DCW3012L02
    DCW3512L05
    DCW4012L1
    Display scale
    0.02g
    0.05g
    0.1g
    Weight checking range
    1-200g
    1- 500g
    2-1000g
    Weight checking accuracy
    ± 0.1-0.3g
    ± 0.15-0.5g
    ± 0.2-0.6g
    Size of weighing section
    L 300mm*W 120mm
    L:350mm*W 120mm
    L 400mm*W 120mm
    Suitable product size
    L≤ 200mm;W≤ 120mm
    L≤ 230mm;W≤ 120mm
    L≤ 280mm;W≤ 120mm
    Weighing Control System
    DADI On-line weighing control system V1.1.5
    Belt speed
    5-90m/min
    Sorting section
    Standard 2 sections,optional 3 sections
    Eliminating device
    Air blowing, push rod, baffle, top and bottom turning plate are optional
    Product details
    Advantage:
    1. Weight compensation function
    2. Histograms and graphs are used to analyze the product qualification rate.
    3. Secondary operation authority management, support self-set password.
    4. 100 product formulas can be preset and stored.
    5. Multiple rejection methods for unqualified products, and support for unqualified shutdown function.
    6.It can be used to eliminate bottles and cans, and to ensure that the bottles do not fall without caps and are sorted to the storage area normally.
    Application
    Application1:
    The automatic checkweigher is a special equipment used by food and pharmaceutical companies for online product weight detection. This kind of testing equipment not only guarantees the accuracy of the product weight, reduces the production waste caused by the weight exceeding the standard value, but also improves the trust of the product in the hearts of customers.
    Application2:

    Checkweigher is a dynamic high-precision online weighing automation equipment, which can be integrated with various packaging production lines and conveying systems. It is mainly used for online inspection of product weights, whether there are missing parts in the packaging, or product weight archives. Online checkweighing equipment has gradually become an indispensable link in modern industrial production, especially in the production process of food and pharmaceutical industries.

    Application3:
    Professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years’ experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment. Based on innovation
